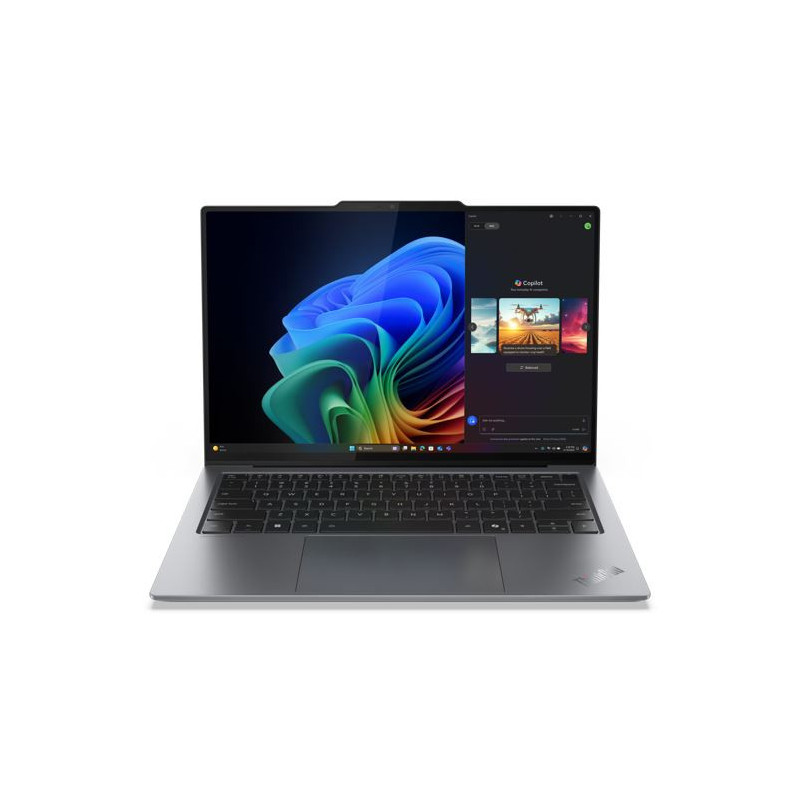

LENOVO ThinkPad X9 G1 14' 2.8K OLED TOUCH Intel U7-258V 32GB DDR5 512GB SSD WIN 11 PRO Arc Graphics NPU 40 TOPS Fingerprint Thunderbolt 3YR PRE 1.2kg
PERFORMANCE
Processor Intel Coreâ„¢ Ultra 7 258V 8C (4P + 4LPE) / 8T Max Turbo up to 4.8GHz 12MB
AI PC Category Copilot+ PC
NPU Integrated Intel AI Boost up to 47 TOPS
Graphics Integrated Intel Arcâ„¢ Graphics 140V
Chipset Intel SoC Platform
Memory 32GB Soldered LPDDR5x-8533 MoP Memory
Memory Slots Memory soldered to systemboard no slots dual-channel
Max Memory 32GB soldered memory not upgradable
Storage 512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0
Storage Support One drive up to 2TB M.2 2242 SSD
Storage Slot One M.2 2242 PCIe 4.0 x4 slot
Card Reader None
Audio Chip High Definition (HD) Audio Cirrus Logic CS42L43
Speakers Stereo speakers 2W x2 Dolby Atmos
Camera UHD 8.0MP with Large Sensor + IR Discrete with E-Shutter ToF Sensor MIPI
Microphone 2x Array
Battery Integrated 55Wh
Power Adapter 65W USB-C Slim GaN (3-pin)
DESIGN
Display 14' 2.8K (2880x1800) OLED 500nits Anti-reflection / Anti-smudge 100% DCI-P3 30-120Hz VRR DisplayHDRâ„¢ True Black 600 Dolby Vision Touch
Touchscreen OGM 10-point Multi-touch
Keyboard Backlit English
Touchpad Buttonless glass surface multi-touch Haptic Touchpad supports Precision TouchPad (PTP) 80 x 130 mm (3.15 x 5.12 inches)
Case Color Grey
Case Material Aluminium (Top) Aluminium (Bottom)
Pen Pen Upgradable (Purchase Separately)
Dimensions (WxDxH) 311.8 x 212.3 x 6.7 - 17.18 mm (12.28 x 8.36 x 0.26 - 0.68 inches)
Weight Starting at 1.27 kg (2.80 lbs)
SOFTWARE
Operating System Windows 11 Pro English (US) / English (UK)
Bundled Software Intel Connectivity Performance Suite + Lenovo AI Now
CONNECTIVITY
Ethernet No Onboard Ethernet
WLAN + Bluetooth Intel Wi-Fi 7 BE201 802.11be 2x2 + BT5.4
WWAN Non-WWAN
SIM Card None
NFC None
Standard Ports 2x USB-C (Thunderboltâ„¢ 4 / USB4 40Gbps) with USB PD 3.0 and DisplayPortâ„¢ 2.1
1x HDMI 2.1 up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderboltâ„¢ / USB-C. For more compatible docking solutions please visit Docking for ThinkPad X9-14 Gen 1
SECURITY & PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style Match-on-Chip Integrated in Power Button
Other Security ToF Human Presence Detection (2.8K models)
E-shutter
IR camera for Windows Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro
SERVICE
Base Warranty 1-year Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR 8.0
EPEATâ„¢ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications Eyesafe Certified 2.0
Intel Evoâ„¢ Platform
Mil-Spec Test MIL-STD-810H military test passed
